How to Choose the Right Solar Cable for Your PV System

Demand for solar energy keeps growing. Rooftop systems, solar farms, and commercial installations—they all need reliable cables. But if you are sourcing solar wire for your project, the real question is: most cables on the market look similar on the surface. Prices range from low to high. What actually makes the difference?

A solar cable is a long-term investment. Pick the wrong one, and you face power losses, frequent system failures, cable breakdowns, and even fire hazards. Maintenance costs add up fast. Understanding what makes a photovoltaic wire reliable and efficient matters more than just comparing price tags.

What Defines a Quality Solar Cable

The performance of a photovoltaic wire depends on several factors: conductor material, insulation type, cross-linking process, and compliance with international standards. At high temperatures or under continuous UV exposure, keeping every parameter consistent is where good cables separate from average ones.

Key factors to evaluate

Conductor material – Tinned copper offers superior corrosion resistance in humid or coastal environments compared to bare copper, preventing oxidation and maintaining stable conductivity over decades.Insulation & sheathing – Cross-linked polyolefin (XLPO) provides excellent resistance to UV radiation, ozone, hydrolysis, and high temperatures up to 120°C.Certification standards – Look for TUV (EN 50618 / IEC 62930) or UL 4703 certifications, which guarantee the cable meets international safety and performance requirements.Temperature range – A cable rated for -40°C to +90°C ensures reliable performance in extreme climates, from cold deserts to hot rooftops.Service life – A quality solar cable should match the 25-year lifespan of solar panels, reducing the need for costly mid-life replacement.

A Closer Look at Suntree's Solar Cable

If you are evaluating solar cables on the market, Suntree's range—including H1Z2Z2-K (TUV) and PV-UL4703—is worth a closer look. Our specifications are built around actual application needs, not just numbers on a sheet.

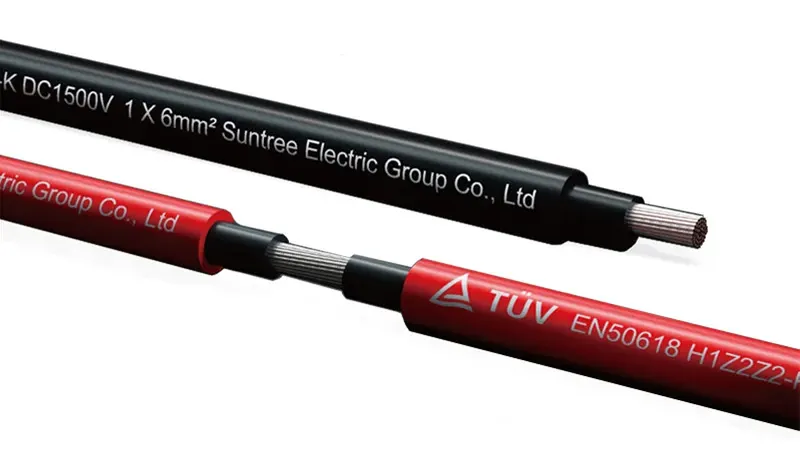

Technical Specifications (H1Z2Z2-K TUV)

What these numbers tell you:

• Supports 1500V DC for modern high-voltage PV systems
• Handles extreme temperature fluctuations from -40°C to +90°C
• Fine copper strands provide flexibility for easy installation and routing
• Low smoke halogen-free material ensures safety in case of fire
• 4D bending radius allows tight installation spaces without damaging the cable

Why Conductor Material Matters

Plenty of solar cables claim to be high-quality. The difference is in the conductor. This cable uses tinned copper instead of bare copper. Tinning involves coating the copper strands with a thin layer of tin, which acts as a protective barrier against corrosion and oxidation.

What this means for your system:

• Tinning prevents oxidation and corrosion, especially in coastal or high-humidity environments
• Maintains stable electrical conductivity over decades of service
• Reduces risk of hot spots that can lead to system failure
• Ensures reliable power transmission from panels to inverter
• Critical for systems installed near the ocean or in industrial areas with corrosive atmospheres

​​Insulation Technology That Lasts

Irradiation Cross-Linking

Our cables undergo an electron-beam cross-linking process. This enhances the molecular structure of the insulation and sheath, transforming the polymer from a thermoplastic into a thermoset material. The result is a cable that can withstand continuous operating temperatures of 125°C without melting or deforming.

Low Smoke Halogen-Free (LSZH):

In case of fire, our cables emit minimal smoke and no toxic halogen gases such as chlorine or fluorine. This protects people and equipment, and is increasingly a requirement for modern solar installations, especially in residential and commercial buildings.

Weather and UV Resistance:

The sheath is designed to resist hydrolysis (moisture degradation) and UV radiation. Even after decades of direct sunlight exposure, the cable maintains its mechanical integrity and electrical insulation properties. This is what makes a solar cable truly "outdoor-rated."

Certifications You Can Trust

Suntree cables are strictly tested against international standards:

• TUV Certification (H1Z2Z2-K, PV1-F) – Compliant with EN 50618 and IEC 62930 for European and global markets, covering both AC and DC applications.
• UL Certification (PV-UL4703) – Compliant with UL 4703 for North American requirements, rated for 600V, 1000V, or 2000V depending on the application.
• RoHS Compliance – Environmentally friendly materials with restricted heavy metals.
• Halogen Determination – Compliant with EN 50525.
• Fire Resistance – Compliant with EN 60332-1-2.
• These certifications mean you can specify our cables with confidence, knowing they meet the most rigorous safety and performance benchmarks in the industry.

Details That Affect Your Daily Operation

Conductor Flexibility:

Fine stranded conductors make installation easier, especially in tight spaces or around corners. The bending radius of 4D means you can route the cable in smaller conduits without risking internal damage.

Color Coding:

Red and black options allow for clear polarity identification during installation. This simple detail reduces the risk of wiring errors that could damage sensitive equipment or create safety hazards.

Long Service Life:

Designed with a service life of more than 25 years, our solar cables match the lifespan of your solar panels, reducing the need for costly mid-life re-cabling and minimizing system downtime over the project's lifetime.

What Support Looks Like

A solar cable purchase is only as good as the support behind it. Suntree prides itself on being more than just a supplier.

Pre-Sales Technical Support:

Free samples for physical verification and testing.Expert assistance in cable sizing and connector selection.Technical R&D team of 50+ professionals covering all key areas.

On-Time Delivery:

Robust supply chain ensures materials arrive on site exactly when needed.Full test reports and material certificates provided with every shipment.Digital traceability system for real-time access to supply chain data.

​​​​​​After-Sales Service:

24/7 technical support for critical project issues.Service centers and local warehouses in multiple locations worldwide.Clear documentation with installation guidelines and troubleshooting steps.

Summary

Choosing a solar cable is not just about picking a wire. It is about ensuring the long-term safety, efficiency, and profitability of your solar investment. With the right cable, you minimize maintenance, reduce power loss, and guarantee performance for decades.

What to take away:

Tinned copper conductors prevent oxidation and ensure long-term reliability.XLPO insulation is essential for outdoor UV and weather resistance.Irradiation cross-linking provides thermal stability up to 125°C.TUV or UL certifications guarantee safety and performance.25+ year service life matches the lifespan of your solar panels.Partner with Suntree for certified cables, expert support, and global delivery.

Have a specific project in mind?

Whether you are planning a large-scale solar farm, a commercial rooftop system, or a residential installation, we have the right cable for you. Contact our team to discuss your technical requirements, quantity, and delivery schedule. We are here to help you power the future.
