Solar Connector

We provide a variety of specifications and models of solar cable connectors to meet the needs of solar power generation systems with different power and voltage levels.

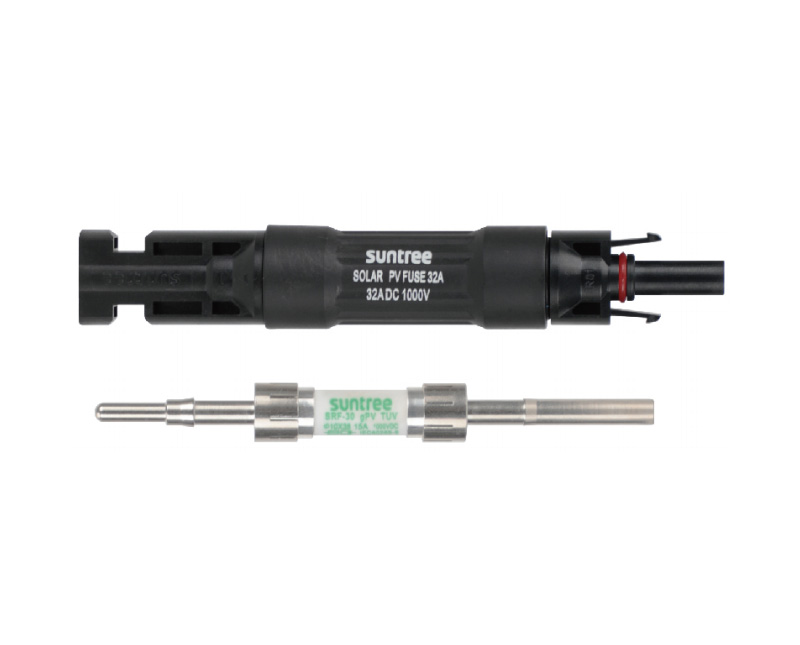

PMCN Series 1000V DC PV Connector

PMCN Series 1000V DC PV Connector use high quality weaither resistance materials that guarantee long-term reliability.The ambient temperature range from -40℃ to 90℃。PMBC Series 1000 DC PV connectors have IP68 water-proof.

Rated voltage:1000V DC

Rated current:10A 15A 20A 30A

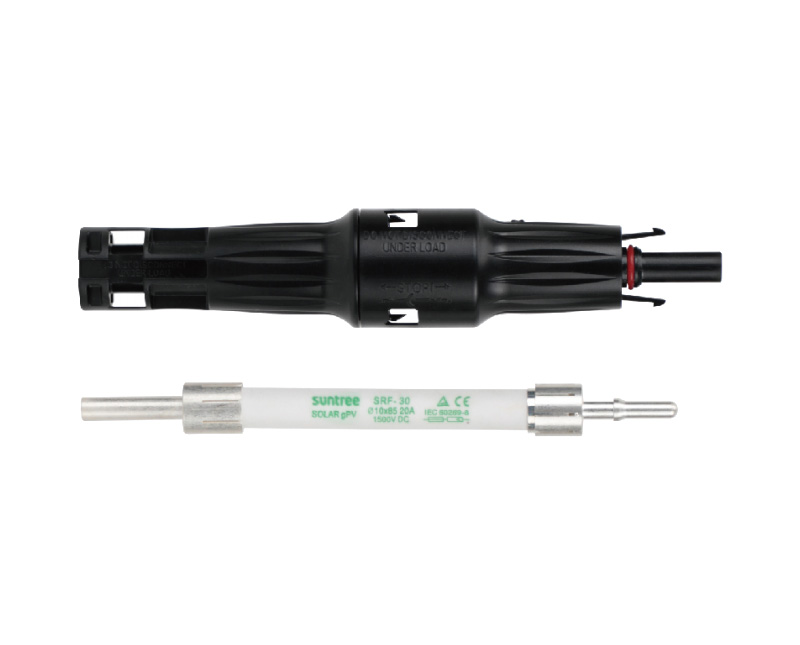

PMCN Series 1500V DC PV Connector

PMCN Series 1500V DC PV Connector use high quality weaither resistance materials that guarantee long-term reliability.The products adopts a number of patented technologies, including but not limited to copper-aluminum transition composite process parts, wire welding process, cable fastening process and adhesive sealing process.The ambient temperature range from -40℃ to 90℃。

Rated voltage:1500V DC(IEC)¹

Rated current:17A(1.5mm²), 22A(2.5mm²; 14AWG), 30A(4mm²; 6mm²; 12AWG,10AWG)

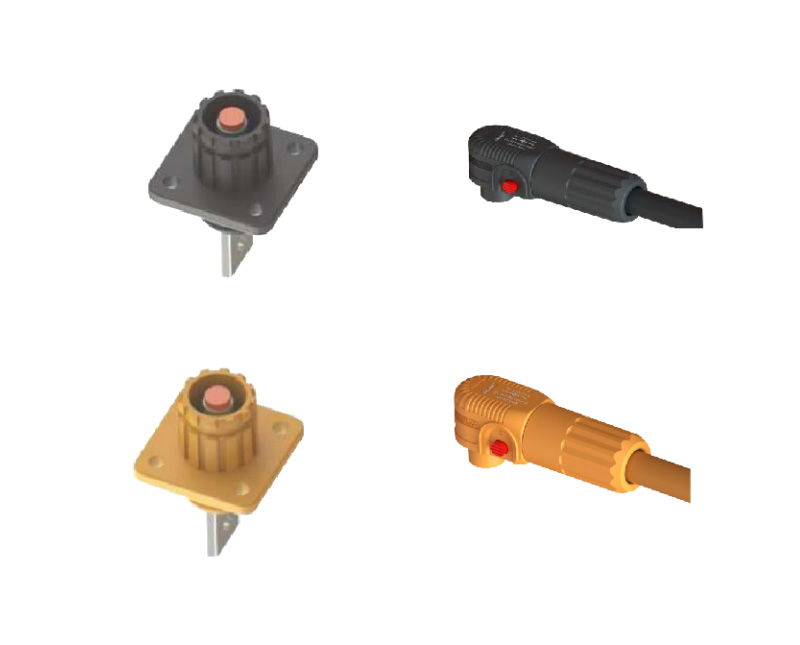

SE6 series Energy Storage Connectors

The SE6 series of energy storage connectors are based on a number of patented designs. First of all, the multi-angle positioning of SE6 series makes the cable routing more beautifu and better overall after the system installation.

Rated Voltage: Max DC 1500V

Rated Current: 100A(10mm²); 100A(16mm²); 130A(35mm²)

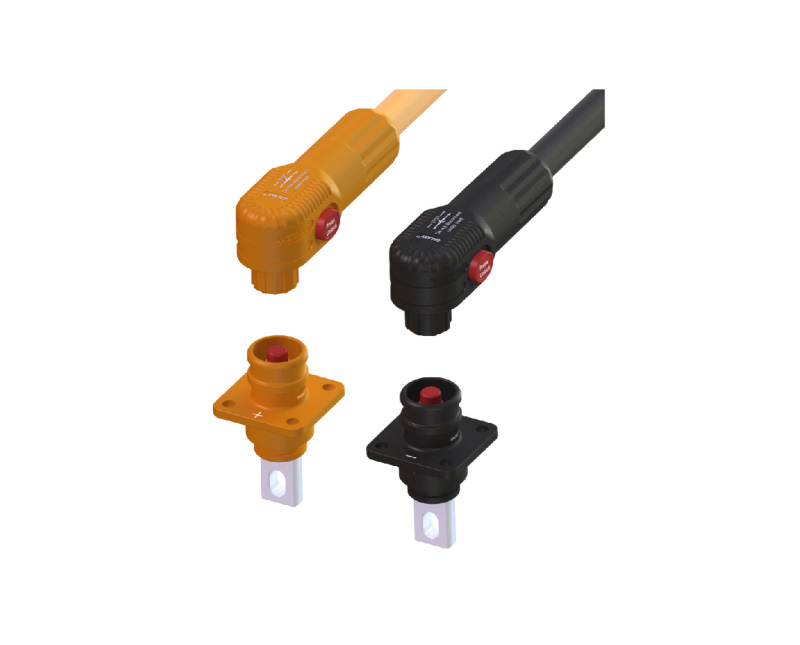

SE8 Series Energy Storage Connectors

The SE8 series of energy storage connectors are based on a number of patented designs.Frst of all, the rotatable design of SE8 series makes the cable routing more beautifull and better overall after system installation. The SE8 series adopts a dual safety button design,which allows the male and female connectors to be unlocked only when both release buttons are pressed at the same time, enhancing electrical safety without adding additionaIl operational actions.This enhances electrical safety without adding extra operation.

The SE8 series is designed with dual safety buttons that can be unlocked between the male and female connectors only when both buttons are pressed at the same time, enhanciing electrical safety withouit aditional operation.

Rated Voltage:Max DC 1500V

Rated Current:220A(35mm²); 250A(50mm²); 250A(70mm²)

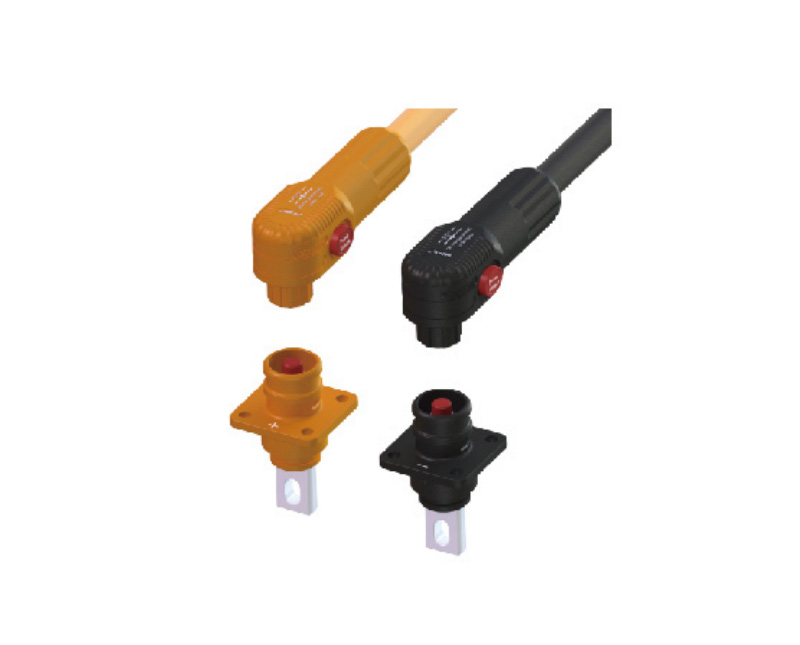

SE10 Series Energy Storage Connectors

The SE10 series of energy storage connectors are based on a number of patented designs. First of all, the rotatable design of SE 10 series makes the cable routing more beautiful and integral after system installlation.The SE 10 series adopts a dual safety button design, which allows the male and female connectors to be unlocked only when both release buttons are pressed at the same time, enhancing electrical safety without adding additional operational actions. The SE10 series adopts a dual safety button design, which can only be unlocked between the male and female connectors by pressing the two release buttons at the same time. The SE10 series is designed with dual safety buttons that can only be unlocked between the male and female connectors when both buttons are pressed simultaneously, enhancing electrical safety without adding additional operation.

Rated Voltage:Max DC 1500V

Rated Current:300A(70mm²); 350A(95mm²)

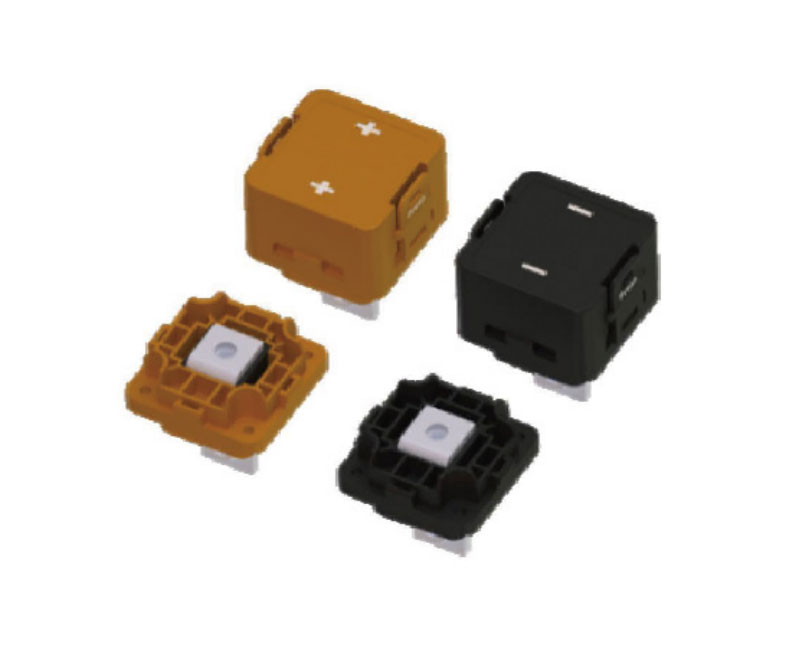

SEC Series Power Y Branch

SUNTREE Power Y Branch use high quality materials that guarantee long-term reliability. Lower contact resistance and higher current transfer capability ensure high product efficiency.

Rated Voltage: Max DC 1500V

Rated Current: 250A(EC250); 350A(EC350)

Why choose SUNTREE?

SUNTREE's system has undergone long-term practice and rigorous environmental testing, and is committed to providing fully controllable quality and delivery for new energy projects worldwide.

SUNTREE's Solution

With nearly 20 years of industry experience, SUNTREE can provide proven, risk-optimized cable solutions for a wide range of complex operating conditions.

Technical R&D team of 50+ people, covering all key areas.
Matching database consisting of 500+ projects
Covering all typical extreme environments worldwide

Full-Process Quality Control

SUNTREE ensures that every cable possesses excellent electrical performance and environmental compliance through rigorous supply chain screening and material standard control.

Fully adopt halogen-free materials
Select only environmentally certified suppliers.
Limit the content of lead, cadmium, and other heavy metals

Safety Inspection

SUNTREE has established an independent, systematic product safety testing process, featuring multi-dimensional experimental validation and critical indicator monitoring

Strictly adheres to international safety standards
Passes multiple extreme environment simulation tests
Digital traceability system ensures real-time access to data across the entire supply chain.

The Globally Trusted New Energy Cable Expert

SUNTREE has delivered over 500 large-scale projects worldwide, providing specialized cable solutions for renewable energy, energy storage, electric vehicle charging, and industrial automation.

Romania

350KW PV Project in Romania

Romania

350KW PV Project in Romania

Romania

350KW PV Project in Romania

Romania

350KW PV Project in Romania

Get a inquiry

Service & Support

SUNTREE has established a professional, responsive service support network to ensure you receive clear and timely technical and commercial support at every stage.

24/7 technical support ensures immediate response to critical project issues.
Free samples are provided to support physical verification, reducing selection and technical risks.
Service centers and local warehouses are established in multiple locations worldwide.

WHAT DO YOU WANT TO ASK?

FREQUENTLY ASK QUESTION

Can you provide customized connector solutions?

Whether it is a special interface form, current and voltage requirements, or specific environmental adaptability, etc., we can provide you with customized connector products that meet your requirements and meet your individual needs.

How long is the service life of the product and how to maintain it?

How weather resistant are the connectors in harsh outdoor environments?

What is the contact resistance of a connector and how do I ensure good electrical conductivity?
